Factory supply Paint booth cars powder coating spray booth autobody

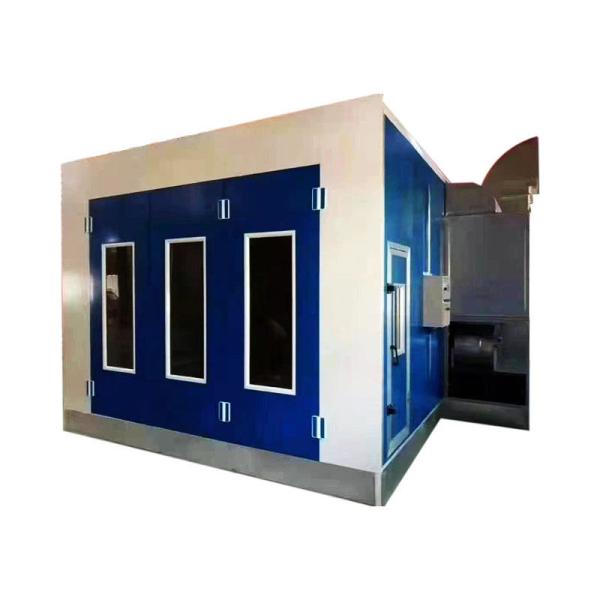

spray booth
Efficient Airflow Management
Our spray booth features advanced airflow management that ensures a
consistent, contaminant-free environment.
The downdraft ventilation system captures overspray efficiently,
keeping the atmosphere clean for flawless automotive
and auto parts painting.
inside dimension | 6900 × 3900 × 2650 mm (L × W × H) |
Outside dimension | 7000 × 5350 × 3400 mm (L × W × H) |
| Basement | 1.2 Galvanized sheet bending hoarding, square tube supporting horizontal and longitudinal beams, 30x4 flat iron + ⌀8 twisted
steel floor grille, overall load-bearing 2.4T; (load-bearing can be
adjusted according to needs) (side wall exhaust and trench are optional
exhaust) |
| front door | Door size: 3000 × 2600mm (W×H), sheet metal bending door, 3 door
leaves, square tempered glass window, filling: EPS. (The filling
can be adjusted according to needs) |
| working door | 1 set, working door size: 800×2000mm (W×H), equipped with pressure
lock and glass observation window |
| wall panel | EPS wall panel, effective width 1150mm, total thickness 50mm , color steel plate thickness: 0.426mm, white, steel edges sealed on
both sides; ( Rock wool, PU optional ) |
| roof | 0.6mm galvanized sheet bending ( EPS, rock wool, PU optional ) |
| illumination | Top lighting: 8 groups×4 pcs = 32 pcs 18W lamps Waist lighting: 8sets ×2 pcs = 16 18W lamps, LED lamps, flameproof light box Illumination ≥1000Lux |
Air unit Position | Air inlet from the side , exhaust from the rear, square tube
welding + aluminum tee frame, white paint, high-strength
machine-made 20mm thick rock wool board mask |
Make-up air unit | 2 sets of external rotor double-inlet centrifugal fans, single
motor power: 4KW; total flow: 25000m3 /h, no-load wind speed:
0.25m/s; air supply pneumatic adjustment damper , cycle start
pneumatic damper . |
Exhaust-air Unit | 1 external rotor double-inlet centrifugal fan, single motor power: 7.5KW; total flow: 21000m3 /h, no-load wind speed: 0.25m/s; exhaust
manual adjustment damper . |
| Heating system | Equipped with a Riello RG5S burner with a maximum heat output of
26000KW; equipped with a 304 stainless steel heat exchange furnace;
heating spray paint: 20°C (from 0°C to 20°C in spray painting
state); baking paint: 10-15 minutes ( From 20° to 60ºС) paint condition. (Natural gas heating, electric heating tube heating, and infrared baking lamp heating can be selected) |
| filtering system | 1. Air supply primary filter cotton : EN 779 level: G3 2 sub-high efficiency filtration: full depth three-dimensional
viscose; EN799 level: F5, 3 Glass fiber paint-resisting cotton blanket filtration: EN 779
Level: G3; 4. Activated carbon particle filtration: adsorbs benzene and xylene
in exhaust gas |
Electronic control system | Spray painting, heating spray painting, baking paint, drying time
setting, lighting switch, fault indicator light, temperature
controller, power switch, emergency stop switch, timer, temperature
limiter , ammeter , voltmeter , pressure gauge, pressure alarm |
Pipeline system
| The air supply and exhaust are each equipped with 3 sections of 800
x 800 x 1000mm straight air ducts, 1 section of 800 x 800mm 90° elbow, and 1 section of 8 00 x 8 00mm 45° elbow; |
| total power | 17kW |
